5000W Renewable Energy Controller MPPT Hybrid Boost Controller for Off-Grid Wind Solar Hybrid System Hybrid Charge Controller

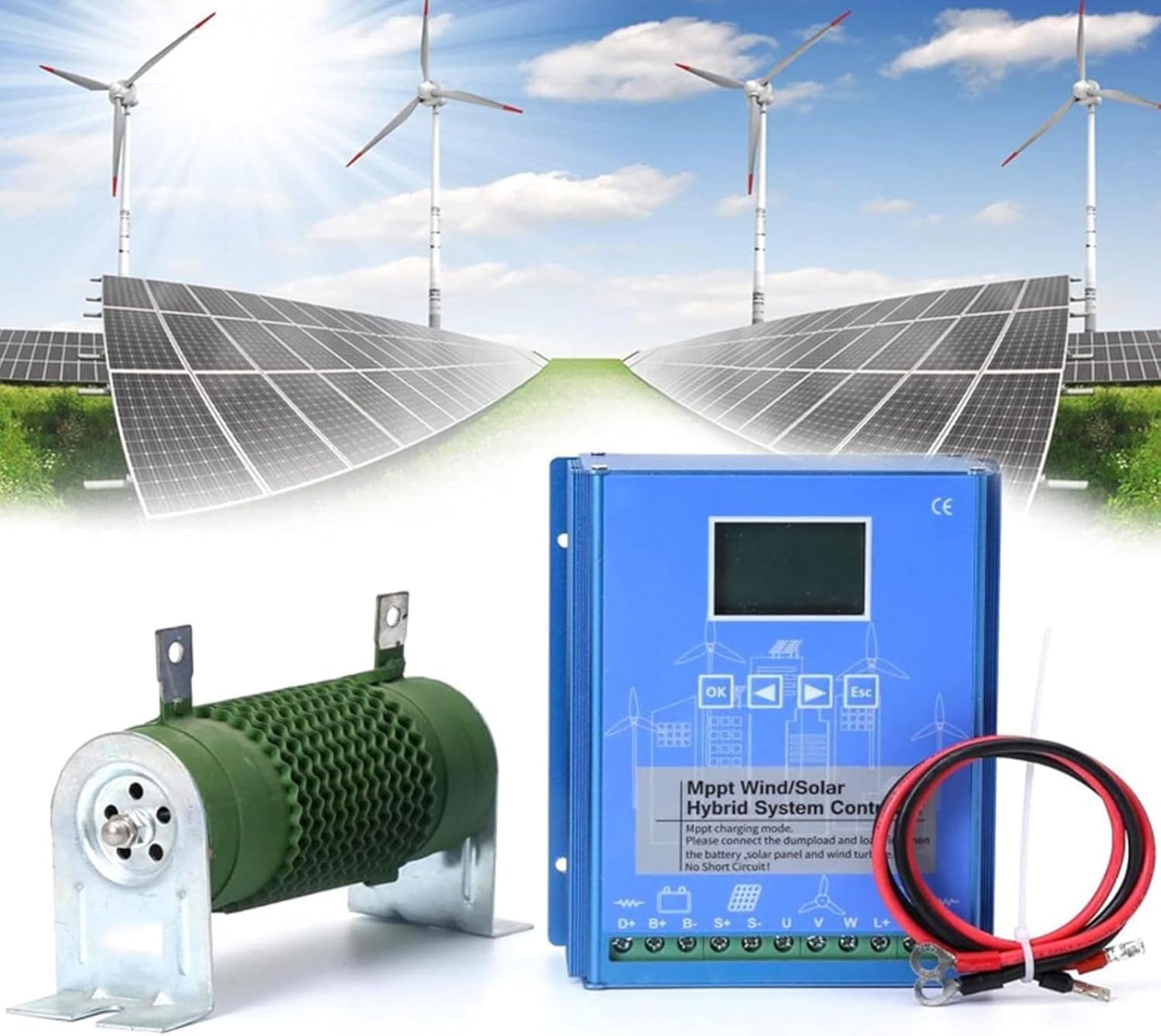

Product specifications:Product type: wind-solar hybrid controllerMaterial: aluminum alloyPower: 5000WRated system voltage: 12V, 24V, 48VController size: 16.7*14.5*6.18cmMaximum input voltage: wind turbine 80VNo-load current (DC): 0.05ACooling method: aluminum profile heat dissipation and self-coolingWorking temperature relative humidity: -25℃~+80℃ /0~90%, no condensationController power supply: battery or solar energyControl method: wind turbine MPPT boost charging, PWM unloading, PWM overcurrent limiting functionPacking list:1*controller1*unloading load1*wire

• After selecting the battery type, the parameters are set perfectly. Users can also customize it according to their needs. The system has been updated more intelligently to control the charging voltage absolutely stably
• Larger LCD screen, easy to browse and operate. Two DC loads (outputs) with 4 output modes, each mode can be set to different models
• reverse charging, sunlight protection, overcharge voltage/undervoltage and overload protection, battery reverse and idling protection, lightning protection, etc
• This hybrid charge controller is suitable for all 12/24/48V batteries, including lithium batteries. Suitable for the largest wind turbines and largest solar panels in the wind-solar complementary system for homes, ships, street lights

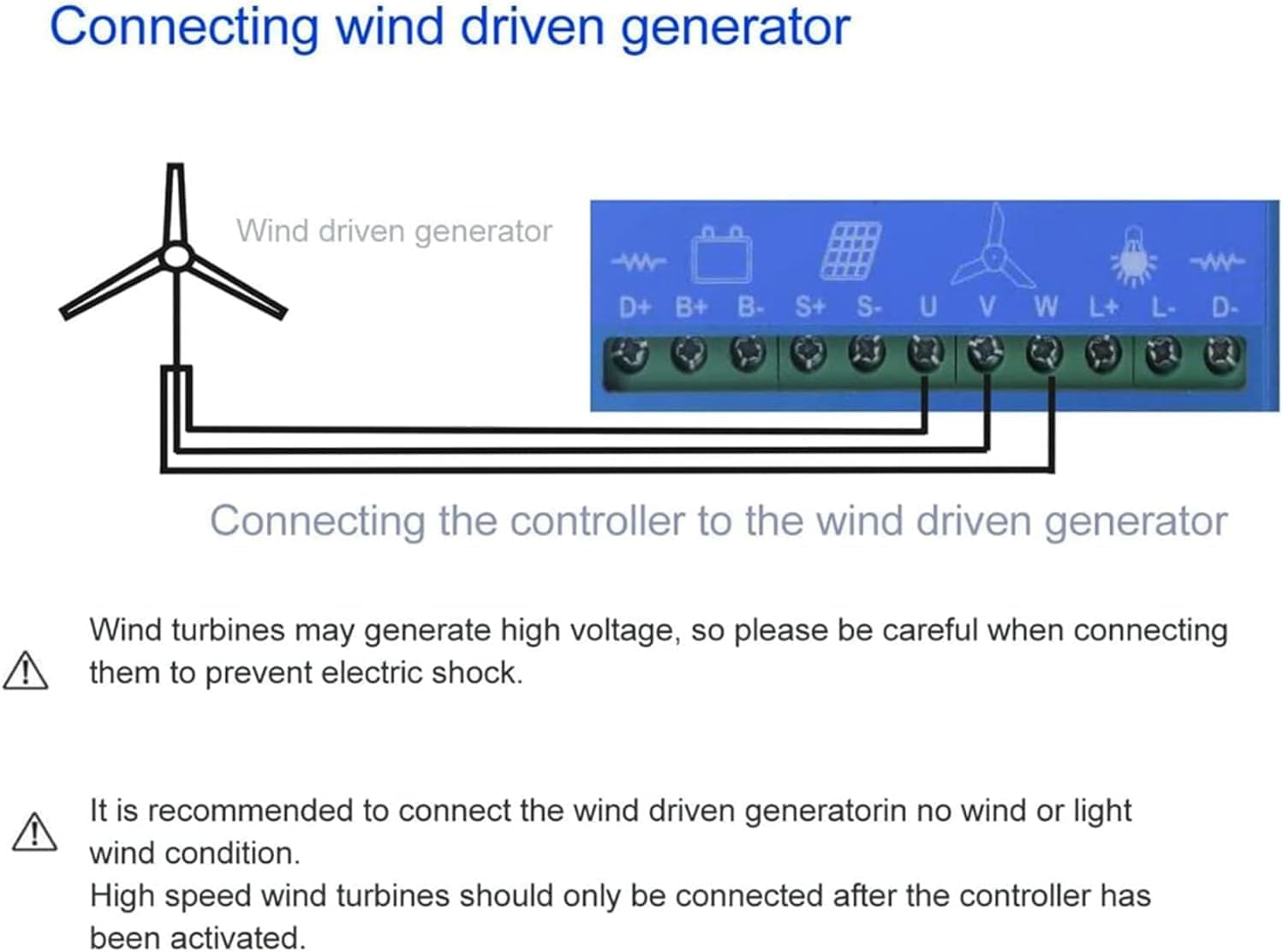

• The wind turbine charging part adopts boost MPPT technology, which can continuously and efficiently charge even at low wind speeds. Stepless discharge function includes external dump charging resistors
